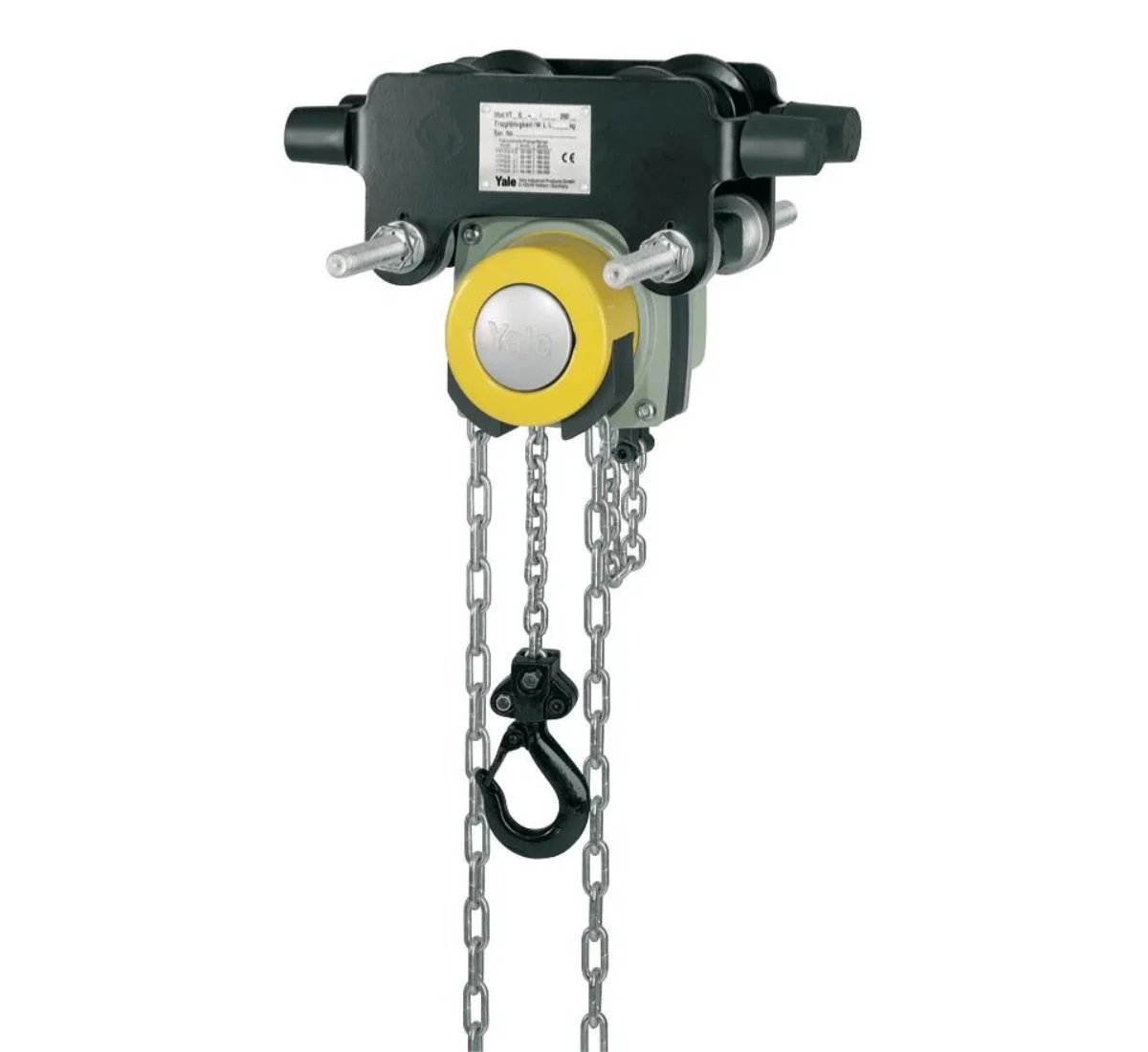

360 Integral Push Trolley Chain Hoist
360 Integral Push Trolley Chain Hoist
500 - 5000kg lifting capacity
Fitted with integral low headroom push travel trolley
Featuring Yale's unique Yalelift 360 chain hoist
Anti drop and tilt devices as standard
Optional rubber buffers, chain container, overload device, beam locking device and corrosion resistant model available on request
Capacity | Falls of Load Chain | Lifting Height | Beam Width Type A | Beam Width Type B | Closed Height mm | Weight | Weight |
|---|---|---|---|---|---|---|---|
500kg | 1 | 3m | 60-180mm | 180-300mm | 188mm | 27kg | 27kg |
1000kg | 1 | 3m | 70-180mm | 180-300mm | 211mm | 35kg | 36kg |
2000kg | 1 | 3m | 82-180mm | 180-300mm | 264mm | 61kg | 62kg |
3000kg | 1 | 3m | 100-180mm | 180-300mm | 316mm | 107kg | 109kg |
5000kg | 2 | 3m | 110-180mm | 180-300mm | 425mm | 152kg | 156kg |
10000kg | 3 | 3m | 125-180mm | 180-310mm | 565mm | - | - |
