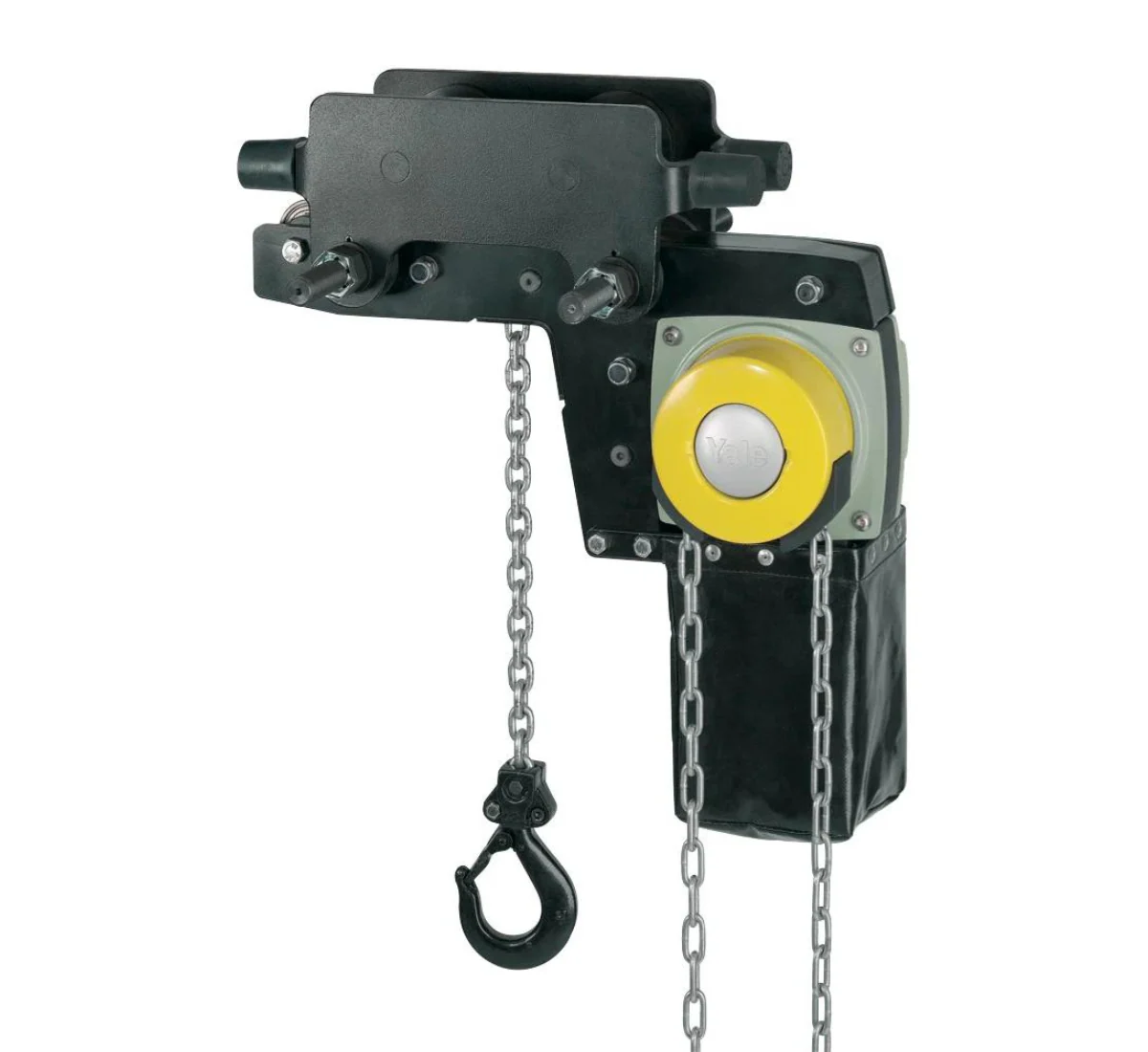

360 YLLHP/G Ultra Low Headroom Trolley Integral Chain Hoist
360 YLLHP/G Ultra Low Headroom Trolley Integral Chain Hoist
Up to 10,000kg lifting capacity
Available in either a Push Travel Trolley or a Geared Travel Trolley
Fitted to Ultra Low Headroom integrated trolley to give maximum hook path
Featuring Yale's unique Yalelift 360 chain hoist
Quick and easy assembly/installation
Anti-tilt and anti-drop devices fitted as standard
Corrosion resistant option available on request
Capacity | Falls Of Load Chain | Lifting Height (mtr) | Beam Width Type A (mm) | Beam Width Type B (mm) | Closed height (mm) | Type A Push Weight (kg) | Type A Geared Weight (kg) | Type B Push Weight (kg) | Type B Geared Weight (kg) |
500 | 1 | 3 | 60-180 | 180-300 | 188 | 27 | 31 | 27 | 32 |
1000 | 1 | 3 | 70-180 | 180-300 | 211 | 35 | 40 | 36 | 41 |
2000 | 1 | 3 | 82-180 | 180-300 | 264 | 61 | 65 | 62 | 67 |
3000 | 1 | 3 | 100-180 | 180-300 | 316 | 107 | 112 | 109 | 114 |
5000 | 1 | 3 | 110-180 | 180-300 | 425 | 142 | 157 | 156 | 161 |
10000 | 3 | 3 | 125-180 | 180-310 | 565 | On Req | On Req | On Req | On Req |
