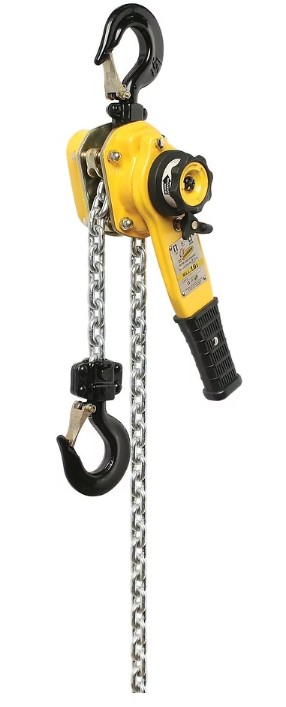

LOADSAFE LEVER HOIST
LOADSAFE LEVER HOIST
PRODUCT DESCRIPTION
With a standard lift of 1.5m, this heavy duty lever hoist offers versatile lifting with the added benefit of overload protection, ensuring smooth and seamless operation, whilst preventing equipment damage and ensuring user safety.
Capacity:
0.8t to 9.0t
Applications:
Automotive, Civil, Construction, Engineering, Hire, Infrastructure, Manufacturing, Mining, Ports
Complies with:
AS 1418
PRODUCT FEATURES
Five pocket lift wheel
Integrated safety overload clutch
Factory proof tested to 1.5x W.L.L.
Caged roller bearings on the load sprocket
Unique hand wheel and free wheel knob design
SPECIFICATIONS
PRODUCT NO. | WORKING LOAD LIMIT | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT WLL | NET WEIGHT |
|---|---|---|---|---|---|
LHOZLS008 | 0.8t | 1.5m | 1 | 14kg | 6kg |
LHOZLS016 | 1.6t | 1.5m | 1 | 22kg | 8kg |
LHOZLS032 | 3.0t | 1.5m | 1 | 32kg | 14kg |
LHOZLS063 | 6.0t | 1.5m | 2 | 34kg | 26kg |
LHOZLS090 | 9.0t | 1.5m | 3 | 36kg | 40kg |
dimensions
PRODUCT CODE | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
LHOZLS008 | 146mm | 119mm | 41.5mm | 280mm | 245mm | 96mm | 26.5mm | 35.5mm | 14mm |
LHOZLS016 | 164mm | 126mm | 52mm | 335mm | 265mm | 100mm | 35.5mm | 42.5mm | 19mm |
LHOZLS032 | 196mm | 159mm | 61.9mm | 395mm | 415mm | 114mm | 43mm | 50mm | 24.5mm |
LHOZLS063 | 196mm | 218mm | 84.3mm | 540mm | 415mm | 114mm | 53mm | 60mm | 34mm |
LHOZLS090 | 196mm | 298mm | - | 680mm | 415mm | 114mm | 64mm | 85mm | 40mm |
