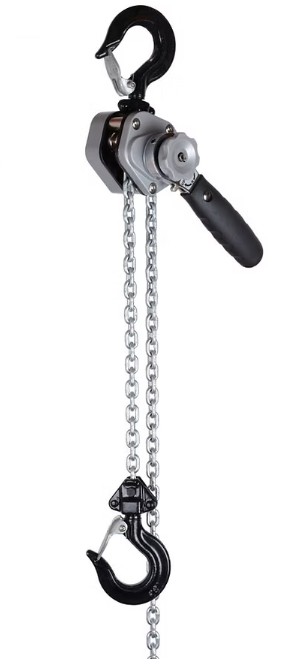

MINI LEVER HOIST
MINI LEVER HOIST
PRODUCT DESCRIPTION
This compact, lightweight mini lever hoist is easy to carry and simple to operate. Small enough to store in a tool box, this lever hoist is ideal for lifting, lowering and positioning loads in tight quarters or elevated locations.
Capacity:
0.25t to 0.50t
Applications:
Construction, Engineering, Mining (where aluminium is permitted)
Complies with:
AS 1418
PRODUCT FEATURES
Carry bag
Lower hook with thrust bearing
Light and compact with aluminium body
Super strength zinc plated alloy load chain
Fully protected brake system and gear box
SPECIFICATIONS
PRODUCT CODE | WORKING LOAD LIMIT (WLL) | STANDARD LIFT | FALLS OF CHAIN | CHAIN GRADE | CHAIN SIZE | NET WEIGHT |
|---|---|---|---|---|---|---|
LHOZM002 | 0.25t | 1.5m | 1 | G80 | 4mm x 12P | 2kg |
LHOZM005 | 0.50t | 1.5m | 1 | G80 | 4mm x 12P | 2.5kg |
DIMENSIONS
PRODUCT CODE | WORKING LOAD LIMIT | A | B | C | D | E | F | G | S | T |
|---|---|---|---|---|---|---|---|---|---|---|
LHOZM002 | 0.25t | 100.5mm | 81mm | 250mm | 160mm | 62.5mm | 42mm | 24.5mm | 34.5mm | 12mm |
LHOZM005 | 0.50t | 100.5mm | 81mm | 250mm | 160mm | 62.5mm | 42mm | 24.5mm | 34.5mm | 12mm |
