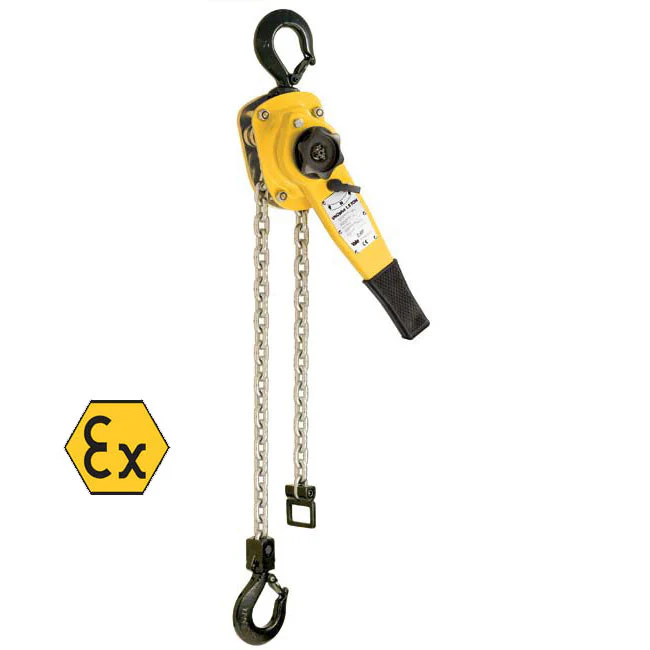

UNOPlus ATEX Ratchet Lever Hoist

• Up to 6000kg lifting capacity

• 1.5 meter standard height of lift

• Basic ATEX level

• II 3 GD c IIB T4 (Zone 2/22)

The UNOPlus ATEX Ratchet Lever Hoist is the explosion protection version of the famous UNOplus Ratchet lever hoist. Load Chain is galvanic zinc plated and features a stainless steel hand chain. Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave. Due to optimised gearing and improved bearings in the housing cover a minimum effort is required to operate the short hand lever. Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.

Basic ATEX level includes:

• Unit special coated

• Load chain galvanic zinc plated

• Stainless steel hand chain

• Top and lock hook special coated

• Trolleys special coated with buffers

• Plain roller special coated

• Brake with cooling element

** PLEASE NOTE IT IS THE RESPONSIBILITY OF THE END USER TO IDENTIFY THE EXPLOSION PROOF CLASSIFICATION REQUIRED, NOT THE MANUFACTURER OR THE SUPPLIER
