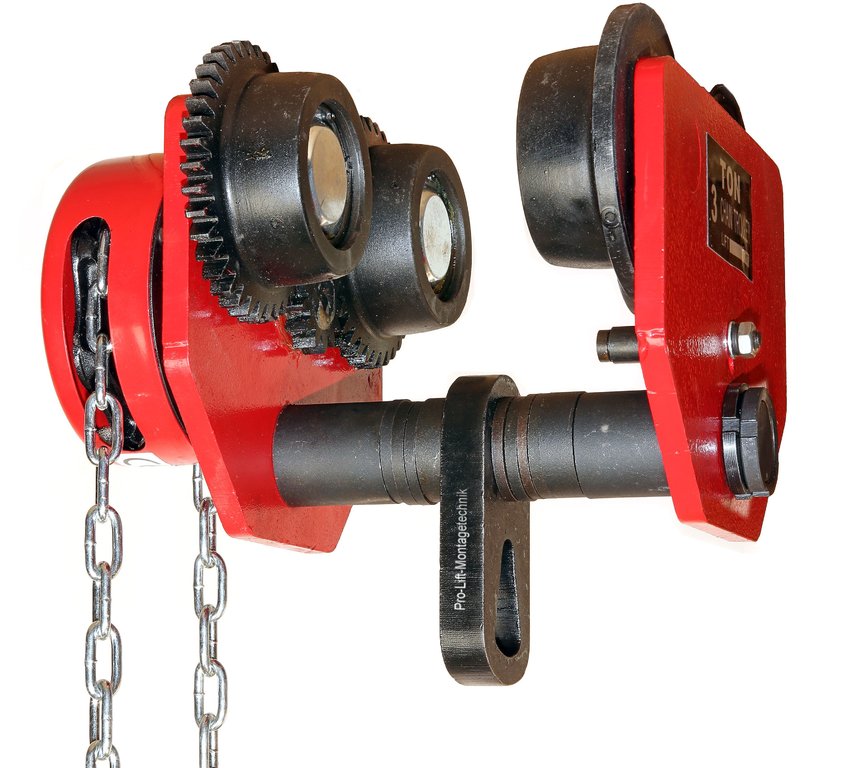

3t plain trolley, heavy duty design, with gear and hand chain, TR9430T, 02045

3t plain trolley, drive: gear with hand chain, heavy duty design, carrying capacity: 3000 kg, TR9430T - 02045

The device can be used for precise positioning and easy moving of heavy loads by hand or an electric hoist. One side of the trolley is operated by a hand chain. So the trolley can easily be moved on a beam.
Adjustable for a beam range width from 80 mm up to 150 mm and various profiles.
Easy beam width adjustment by spacers/washers and locknuts to the desired width
The trolleys are designed for a maximum beam flange slope of 14%.

Application field:

As anchor point for a chain hoist or other hoists.
For mounting on a beam. (Please check carrying capacity/static load!)
Area of application: workshop, manufacturing, warehouse, assembly, etc.

Technical data:

Beam width:                                                              80 mm - 150 mm

Total length:                                                               254 mm

Total height:                                                               271 mm

Max. width (incl spindle):                                           311 mm

Inner diameter of rollers:                                            88 mm

Dimension from roller bottom to bottom eyelet hole: 150 mm

Hook size:                                                                   width 34 mm, height 48 mm

Ball bearings

Weight:                                                                         23 kg
Shipping weight:                                                           25 kg
