SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley

SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley
SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley
SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley
SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley
SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley
1 / 5

SH Type Hook Suspension LOW HEADROOM Foot-mounted Electric Chain Hoist with Motor Trolley

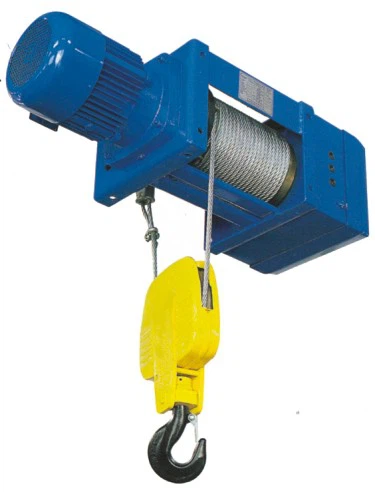

Electric Wire Rope Hoist

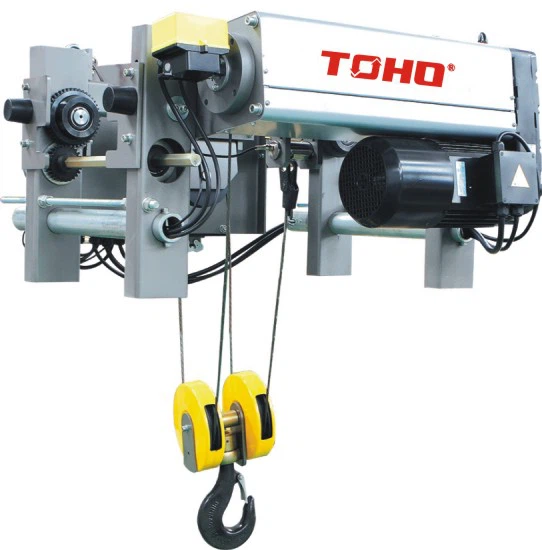

Low Headroom Electric Hoist With Motor Trolley

Capacity
(kg)

Lifting Height
m

Lifting Speed
(m/min)

Lifting Power
KW

Traveling Speed
m/min

Traveling Power
(kw)

Working Group
FEM/ISO

Traveling
Working Group
FEM/ISO

H
(mm)

C
(mm)

I-beam
B(mm)

Weight
kg

2000

6

5/0.8

3.2/0.45

5/20

0.37

3M M6

2M M5

210

556

150-300

341

9

5/0.8

3.2/0.45

5/20

0.37

3M M6

2M M5

210

556

150-300

360

12

5/0.8

3.2/0.45

5/20

0.37

3M M6

2M M5

210

556

150-300

380

15

5/0.8

3.2/0.45

5/20

0.37

3M M6

2M M5

210

556

150-300

401

18

5/0.8

3.2/0.45

5/20

0.37

3M M6

2M M5

210

556

150-300

425

3200

6

5/0.8

3.2/0.45

5/20

0.37

2M M5

2M M5

210

556

150-300

346

9

5/0.8

3.2/0.45

5/20

0.37

2M M5

2M M5

210

556

150-300

363

12

5/0.8

3.2/0.45

5/20

0.37

2M M5

2M M5

210

556

150-300

385

15

5/0.8

3.2/0.45

5/20

0.37

2M M5

2M M5

210

556

150-300

406

18

5/0.8

3.2/0.45

5/20

0.37

2M M5

2M M5

210

556

150-300

428

5000

6

5/0.8

6.1/1

5/20

0.37

2M M5

2M M5

260

596

200-350

413

9

5/0.8

6.1/1

5/20

0.37

2M M5

2M M5

260

596

200-350

435

12

5/0.8

6.1/1

5/20

0.37

2M M5

2M M5

260

596

200-350

462

15

5/0.8

6.1/1

5/20

0.37

2M M5

2M M5

260

596

200-350

489

18

5/0.8

6.1/1

5/20

0.37

2M M5

2M M5

260

596

200-350

516

6300

6

5/0.8

6.1/1

5/20

0.37

1Am M4

2M M5

260

596

200-350

413

9

5/0.8

6.1/1

5/20

0.37

1Am M4

2M M5

260

596

200-350

435

12

5/0.8

6.1/1

5/20

0.37

1Am M4

2M M5

260

596

200-350

462

15

5/0.8

6.1/1

5/20

0.37

1Am M4

2M M5

260

596

200-350

489

18

5/0.8

6.1/1

5/20

0.37

1Am M4

2M M5

260

596

200-350

516

8000

6

5/0.8

9.5/1.5

5/20

0.75

3M M6

2M M5

325

750

200-410

814

9

5/0.8

9.5/1.5

5/20

0.75

3M M6

2M M5

325

750

200-410

846

12

5/0.8

9.5/1.5

5/20

0.75

3M M6

2M M5

325

750

200-410

890

15

5/0.8

9.5/1.5

5/20

0.75

3M M6

2M M5

325

750

200-410

934

18

5/0.8

9.5/1.5

5/20

0.75

3M M6

2M M5

325

750

200-410

978

10000

6

5/0.8

9.5/1.5

5/20

0.75

2M M5

2M M5

325

750

200-410

814

9

5/0.8

9.5/1.5

5/20

0.75

2M M5

2M M5

325

750

200-410

846

12

5/0.8

9.5/1.5

5/20

0.75

2M M5

2M M5

325

750

200-410

890

15

5/0.8

9.5/1.5

5/20

0.75

2M M5

2M M5

325

750

200-410

934

18

5/0.8

9.5/1.5

5/20

0.75

2M M5

2M M5

325

750

200-410

978

12500

6

4/0.6

12.5/2

5/20

0.75

1Am M4

2M M5

325

750

200-410

814

9

4/0.6

12.5/2

5/20

0.75

1Am M4

2M M5

325

750

200-410

846

12

4/0.6

12.5/2

5/20

0.75

1Am M4

2M M5

325

750

200-410

890

15

4/0.6

12.5/2

5/20

0.75

1Am M4

2M M5

325

750

200-410

934

18

4/0.6

12.5/2

5/20

0.75

1Am M4

2M M5

325

750

200-410

978

16000

6

4/0.6

16/2.6

5/20

0.75x2

2M M5

2M M5

400

920

300-450

958

9

4/0.6

16/2.6

5/20

0.75x2

2M M5

2M M5

400

920

300-450

1042

12

4/0.6

16/2.6

5/20

0.75x2

2M M5

2M M5

400

920

300-450

1166

15

4/0.6

16/2.6

5/20

0.75x2

2M M5

2M M5

400

920

300-450

1286

18

4/0.6

16/2.6

5/20

0.75x2

2M M5

2M M5

400

920

300-450

1406

20000

6

4/0.6

16/2.6

5/20

0.75x2

1Am M4

2M M5

400

920

300-450

958

9

4/0.6

16/2.6

5/20

0.75x2

1Am M4

2M M5

400

920

300-450

1042

12

4/0.6

16/2.6

5/20

0.75x2

1Am M4

2M M5

400

920

300-450

1166

15

4/0.6

16/2.6

5/20

0.75x2

1Am M4

2M M5

400

920

300-450

1286

18

4/0.6

16/2.6

5/20

0.75x2

1Am M4

2M M5

400

920

300-450

1406

8000

20

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1019

24

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1060

28

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1101

32

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1142

36

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1183

10000

20

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1019

24

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1060

28

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1101

32

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1142

36

8/1.3

16/2.6

5/20

0.75

2M M5

2M M5

325

750

200-410

1183

12500

20

6.3/1

16/2.6

5/20

0.75

1Am M4

2M M5

325

750

200-410

1019

24

6.3/1

16/2.6

5/20

0.75

1Am M4

2M M5

325

750

200-410

1060

28

6.3/1

16/2.6

5/20

0.75

1Am M4

2M M5

325

750

200-410

1101

32

6.3/1

16/2.6

5/20

0.75

1Am M4

2M M5

325

750

200-410

1142

36

6.3/1

16/2.6

5/20

0.75

1Am M4

2M M5

325

750

200-410

1183


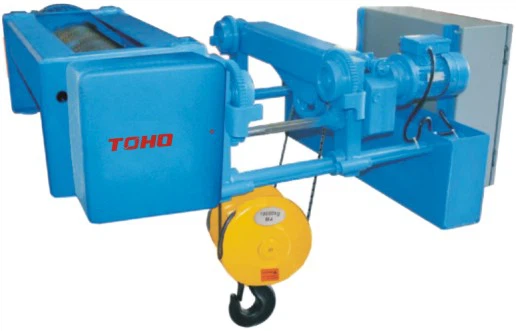

Low-Headroom Hoist With Motor Trolley (4/1 Rope Reeving)

Lifting

Height

6m

9m

12m

18m

SH5
4/1D

L

1378

1579

1815

2033

L0

632

851

1069

1287

S

110

164

219

273

SH6
  4/1D

L

1464

1693

1922

2151

L0

688

917

1146

1375

S

118

177

236

295

SH7
4/1D

L

1706

1939

2172

2405

L0

738

971

1204

1473

S

117

175

233

292

Type

Capacity
(kg)

Working Group

Lifting speed
(m/min)

Motor Power
(kw)

Traveling speed
(kw)

Traveling motor
(kw)

B

B1

Hmin

W

C

SH5 4/1D

6300

M4

4.5
4.5/1.1

3.5
3.5/0.8

15
15/5

0.37
0.37/0.12

300

500

169

950-1320

116-460

SH6 4/1D

10000

M4

7.5
7.5/2.0

3.8
3.8/0.9

15
15/5

0.55
0.55/0.18

350

535

185

1060-1470

140-460

SH7 4/1D

16000

M4

13
13/3.4

4
4/1

15
15/5

0.75
0.75/0.25

380

600

209

1250-1650

150-460

H-type Rail is recommended, I-type Rail is also available.

SH Electric Wire Rope Hoist
Electric Wire Rope Hoist
SH
This kind of wire rope hoist has newest designing with quadrate outline, modularized construction, good unitized capacity. The fundamental mode combine is very convenient and multiform. The special drive composition method is very stationary which save the usual long transmission shaft. The reducer use planetary speed-down drive which have high effective, low yawp long using life. Unique column rotor-taper breaking wheel motor with low yawp, disk reliable. With the advance guide rope technology from overseas, unit is very reliable and safety. High precision and super mechanical spin limiter High quality control electric component with low malfunction. The products from 400kg to 50t with fully series, which are complied with the up to date international standard.

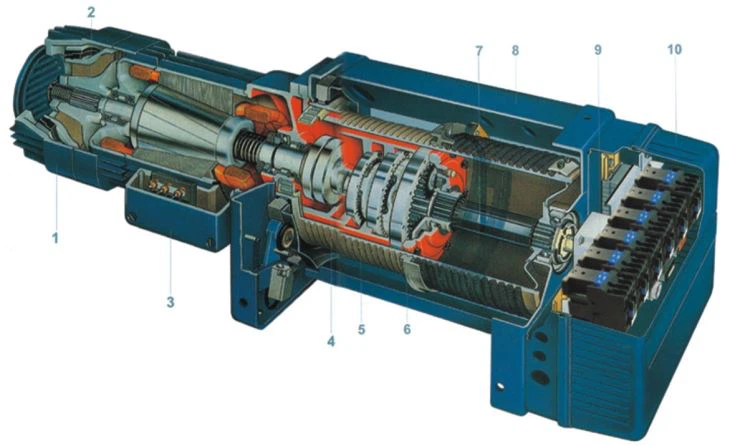

1. Lifting motor
2. Motor brake
3. Terminal box
4. Coupling
5. Drum and rope guider
6. Planetary gearbox
7. Output shaft
8. Frame
9. Cam limit switch
10. Electric control box

SH Model Foot-Mounted Hoist (2/1 Rope Reeving)
Model Foot-Mounted Hoist
SH
SH Model Foot-Mounted Hoist (2/1 Rope Reeving)

Lifting

Height(H)

9m

12m

18m

24m

30m

Sh3
2/1A

L0

431

528

722

916

1110

L1

681

778

972

1166

1360

D

113

113

113

113

113

Sh4
2/1A

L0

494

648

856

1054

1272

L1

771

925

1133

1341

1549

D

148

198

198

198

198

Sh5
2/1A

L0

524

683

901

1119

1337

L1

827

986

1204

1422

1640

D

161

211

211

211

211

Sh6
2/1A

L0

574

768

997

1226

1455

L1

907

1101

1330

1559

1788

D

178

258

258

258

258

Sh7
2/1A

L0

612

808

1041

1274

1507

L1

1005

1201

1434

1667

1900

D

204

284

284

284

284

Sh8
2/1A

L0

612

808

1041

1274

1507

L1

1005

1201

1434

1667

1900

D

204

284

284

284

284

Type

ɸ

A

A0

B

Hmin

L3

S

SH3

2/1A

13

278

215

253

455

163

0.0161H

SH4

2/1A

18

335

265

310

578

181

0.0174H

SH5

2/1A

18

370

300

346

649

198

0.0182H

SH6

2/1A

26

408

325

381

739

226

0.0191H

SH7

2/1A

26

480

370

455

799

249

0.0194H

SH8

2/1A

26

480

370

455

799

249

0.0194H

Traveling type is available for above hoists with extra cost.

Type

Capacity
(kg)

Working Group

Lifting speed
(m/min)

Motor Power
(kw)

Traveling speed
(kw)

Traveling motor
(kw)

L2

Single speed

Double Speed

SH3

2/1A

1000

M4

8.4
  8.4/2.1

1.5
  1.5/0.4

20
  20/6.7

0.37
  0.37/0.12

300

500

SH4

2/1A

2000

M4

7.2
  7.2/2.4

3
  3/1

20
  20/6.7

0.37
  0.37/0.12

350

535

SH5

2/1A

3200

M4

7
  1/1.6

4.5
  4.5/1.1

20
  20/6.7

0.37
  0.37/0.12

380

600

SH6

2/1A

5000

M4

7.6
  7.6/1.8

7.5
  7.5/2.0

20
  20/6.7

0.37
  0.37/0.12

460

645

SH7

2/1A

8000

M4

8
  8/2

13
  13/3.4

20
  20/6.7

0.37
  0.37/0.12

520

620

SH8

2/1A

10000

M4

6.4
  6.4/1.6

13
  13/3.4

20
  20/6.7

0.37
  0.37/0.12

520

620


SH Model Foot-Mounted Hoist (4/1 Rope Reeving)
Model Foot-Mounted Hoist
SH
SH Model Foot-Mounted Hoist (4/1 Rope Reeving)

Lifting

Height(H)

6m

9m

12m

15m

Sh4
4/1A

L1

770

978

1186

1394

L0

925

1133

1341

1549

Sh5
4/1A

L1

812

1030

1248

1466

L0

986

1204

1422

1640

Sh6
4/1A

L1

899

1128

1357

1586

L0

1101

1330

1559

1788

Sh7
4/1A

L1

955

1188

1421

1654

L0

1201

1434

1667

1900

Sh8
4/1A

L1

955

1188

1421

1654

L0

1201

1434

1667

1900

Type

ɸ

A

A0

B

Hmin

L3

S

SH4

4/1A

18

485

395

323

531

120

0.0174H

SH5

4/1A

18

520

430

358

619

134

0.0182H

SH6

4/1A

26

588

468

393

689

161

0.0191H

SH7

4/1A

26

720

540

472

760

176

0.0194H

SH8

4/1A

26

720

540

472

760

176

0.0194H

Type

Capacity (kg)

Working Group

Lifting
speed(m/min)

Motor Power (kw)

Traveling speed
(kw)

Traveling
motor(kw)

L2

D

Single speed

Double Speed

SH4

4/1A

3200

M4

8.4
8.4/2.1

1.5
1.5/0.4

20
20/6.7

0.37
0.37/0.12

300

500

169

SH5

4/1A

6300

M4

7.2
7.2/2.4

3
3/1

20
20/6.7

0.55
0.55/0.18

350

535

185

SH6

4/1A

10000

M4

7
1/1.6

4.5
4.5/1.1

20
20/6.7

0.75
0.75/0.25

380

600

209

SH7

4/1A

16000

M4

7.6
7.6/1.8

7.5
7.5/2.0

20
20/6.7

2x0.75
2x0.75/0.25

460

645

243

SH8

4/1A

20000

M4

8
8/2

13
13/3.4

20
20/6.7

2x0.75
2x0.75/0.25

520

620

243

Traveling type is available for above hoists with extra cost.


zixo.pro
