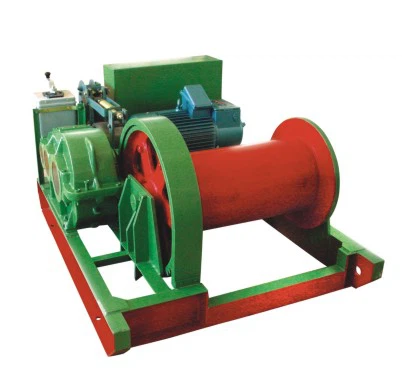

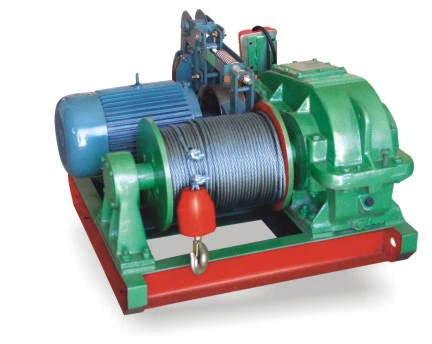

JK Fast Building Electric Windlass Electric Winch
JK Fast Building Electric Windlass Electric Winch
Fast Building Electric Windlass
JK
Model | Cable rated pull | Cable rated | Wire rope | Reduction box | Drum(mm) | ||
Type | Transmission | Dia(ɸ) | Length | ||||
JK1 | 1000 | 34 | 9.3 | JZQ350 | 31.5 | 190 | 360 |
JK3 | 3000 | 35 | 17 | JZQ500 | 23.34 | 270 | 570 |
JK5 | 5000 | 29 | 22 | JZQ650 | 40.17 | 400 | 840 |
JK8 | 8000 | 20 | 26 | JZQ650 | 23.34 | 500 | 900 |
JK10 | 10000 | 19 | 30 | JZQ750 | 23.34 | 550 | 1000 |
Model | Wire length | Type | Motor Power (kw) | Rotate speed | Arrester | Size | Weight(kg) | |
Without rope | With rope | |||||||
JK1 | 110 | Y132M-4 | 7.5 | 1440 | TJ2-200 | 102x90x60 | 460 | 495 |
JK3 | 200 | YZR225M-8 | 22 | 715 | TJ2-300 | 156x137x90 | 1000 | 1205 |
JK5 | 200 | YZR250M1-8 | 30 | 720 | TJ2-300 | 220x180x94 | 2700 | 3320 |
JK8 | 300 | YZR250M1-6 | 37 | 960 | YWZ-300 | 240x180x110 | 4000 | 4740 |
JK10 | 300 | YZR250M2-6 | 45 | 960 | YWZ-400 | 250x190x120 | 5000 | 6460 |
