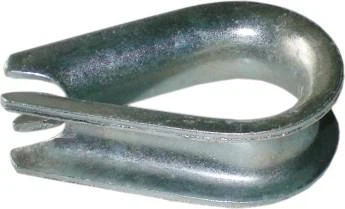

Germany Standard Commercial DIN6899A Type Wire Rope Thimble
Germany Standard Commercial DIN6899A Type Wire Rope Thimble
DIN6899A Type Wire Rope Thimble
Toho-Rongkee is a professional DIN6899A Type Wire Rope Thimble manufacturer and supplier in China, offering you the OEM service and wholesale service. Welcome to buy the newest and quality tools made in China at a discount from our factory, and also welcome to get the free sample from us.
NG=Norminal | a=Switch | i=Inside | C=Inside | Weight |
Size | Opening | Length | Width | /100pcs |
(mm) | (mm) | (mm) | (mm) | (kg) |
2.5 | 3 | 21.5 | 10 | 0.14 |
3 | 3.5 | 23.5 | 11 | 0.35 |
3.5 | 4 | 26.5 | 12 | 0.38 |
4 | 5 | 28.5 | 13 | 0.42 |
5 | 6 | 30 | 14 | 0.80 |
6 | 7 | 33 | 15 | 0.81 |
7 | 8 | 35 | 16 | 1.1 |
8 | 9 | 39 | 18 | 1.7 |
9 | 10 | 43 | 20 | 2.1 |
10 | 11 | 47.5 | 22 | 3.5 |
11 | 12 | 51.5 | 24 | 3.7 |
12 | 13 | 56.5 | 26 | 5.25 |
13 | 14 | 61 | 28 | 7.25 |
15 | 16 | 69.5 | 65 | 8.33 |
16 | 18 | 78 | 35 | 17.9 |
18 | 20 | 86.5 | 40 | 27 |
20 | 22 | 95 | 44 | 35.5 |
24/26 | 26 | 90 | 48 | 52 |
