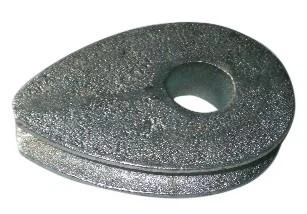

DIN3091 Heavy- duty Wire Rope Thimble
Malleable Cast Ring.
Hot-dipped galvanized or zinc plated as requirement.
Size | Dimension(mm) | Weight | |||
(mm) | a | b | c | d1 | (kg/pc) |
8 | 9 | 15 | 40 | 14 | 0.122 |
10 | 11 | 17.5 | 50 | 18 | 0.23 |
12 | 13 | 20 | 60 | 21 | 0.365 |
14 | 16 | 23.5 | 70 | 25 | 0.625 |
16 | 18 | 26 | 80 | 28 | 0.792 |
18 | 20 | 28.5 | 90 | 31 | 1.042 |
20 | 22 | 31 | 100 | 35 | 1.51 |
22 | 24 | 33.5 | 110 | 38 | 2.144 |
24 | 26 | 36 | 120 | 41 | 2.95 |
26 | 29 | 39.5 | 130 | 44 | 3.491 |
28 | 31 | 42 | 140 | 47 | 4.093 |
32 | 35 | 47 | 160 | 53 | 5.808 |
36 | 40 | 53 | 180 | 59 | 9 |
40 | 44 | 58 | 200 | 65 | 12.74 |
