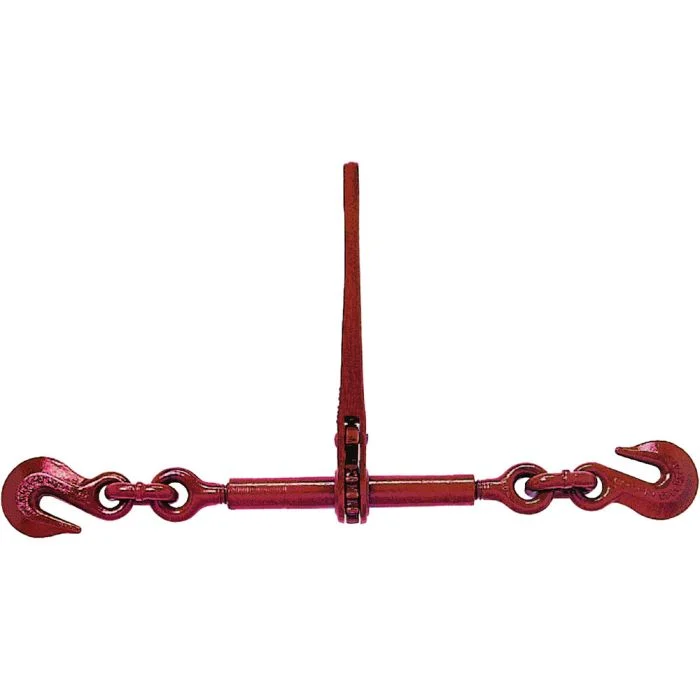

Crosby® 3/8" - 1/2" L-140 Ratchet Load Binder
Crosby® 3/8" - 1/2" L-140 Ratchet Load Binder
Features:
Upgraded for use with Grades 70, 80 and 100 Chain
Utilizes standard Crosby A-323 Alloy Eye Grab Hooks
New design one piece forged handle
Continuous take-up feature provides finite adjustment to tie down load
One piece assembly, no bolts or nuts to loosen
Ratchet spring is rust proofed
All load bearing or holding parts forged
Easy operating positive ratchet
Binders shown with Proof Loads have been individually proof tested to values shown, prior to shipment
Meets or exceeds requirements of US DOT FMCSA Part 393 Subpart I
Matches the Working Load Limit of Grade 100 chain except for 5/8" size
Specifications:
Min-Max Chain Size: 3/8""-1/2"
Take-Up: 8.0"
Handle Length: 14"
Barrel Length: 10"
E1 Open: 33.25"
E Closed: 25.25"
F1 Open: 35.63"
F Closed: 27.63"
Overall Length: 15.38"
Working Load Limit: 15,000 lbs (6.80 tons)
Proof Load: 30,000 lbs
Design Factor 3:1
