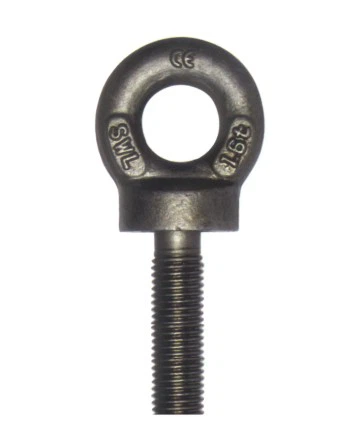

Long Shank Collared Eye Bolts
Long Shank Collared Eye Bolts
Long Shank Collared Eye Blots
B.S.W., U.N.C & U.N.F thread is available
Size | Vertical WLL | Dimensions(mm) | ||||||
(mm) | (t) | A | B | D | E | F | G | H |
M10 | 0.25 | 10 | 22 | 7 | 15 | 9 | 20 | 178 |
M12 | 0.40 | 12 | 28 | 10 | 19 | 11 | 25 | 178 |
M14 | 0.50 | 14 | 36 | 12 | 24 | 14 | 32 | 178 |
M16 | 0.80 | 16 | 36 | 12 | 24 | 14 | 32 | 178 |
M18 | 1.00 | 18 | 43 | 14 | 28 | 17 | 38 | 178 |
M20 | 1.60 | 20 | 43 | 14 | 28 | 17 | 38 | 178 |
M22 | 1.60 | 22 | 43 | 14 | 38 | 17 | 38 | 178 |
M24 | 2.50 | 24 | 57 | 19 | 38 | 22 | 51 | 178 |
M30 | 4.00 | 30 | 71 | 24 | 48 | 28 | 64 | 178 |
