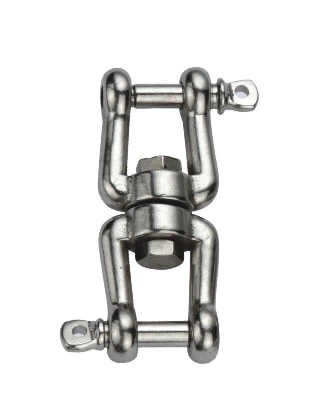

European Type Swivel with Jaw and Jaw
European Type Swivel with Jaw and Jaw
European Type Swivel With Jaw and Jaw
Forged carbon steel
Quenched & tempered &Hot dipped galvanized
Ultimate load is 5 times of the working load limit
Size | Dimension(mm) | B.L. | ||||
(mm) | A | B | C | D | L | (kg) |
5 | 23 | 13 | 13 | 5 | 60 | 820 |
6 | 27 | 15 | 15 | 6 | 65 | 1350 |
8 | 36 | 20 | 22 | 8 | 90 | 2500 |
10 | 44 | 24 | 27 | 10 | 115 | 3500 |
13 | 58 | 32 | 35 | 13 | 154 | 6000 |
16 | 71 | 39 | 45 | 16 | 188 | 10800 |
19 | 80 | 41 | 50 | 19 | 231 | 16100 |
22 | 91 | 47 | 52 | 22 | 254 | 22000 |
25 | 113 | 63 | 67 | 25 | 295 | 27000 |
