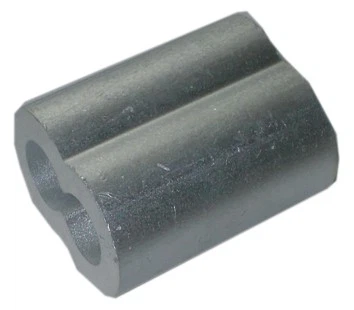

Aluminum Sleeve Hourgalss US Standard Wire Rope Sleeve Ferrule
Aluminum Sleeve Hourgalss US Standard Wire Rope Sleeve Ferrule
ALUMINUM SLEEVE HOURGALSS
Rope dia | Dimension(mm) | Standard Length | Net Weight | |||
(mm) | A | B | C | D | (mm) | (g/pc) |
1.6(1/16'') | 4.37 | 6.35 | 1.96 | 4 | 9.6 | 0.41 |
2(5/64'') | 5.56 | 7.95 | 2.39 | 4.8 | 9.6 | 0.73 |
2.4(3/32'') | 7.06 | 10.26 | 3.30 | 6.5 | 12.7 | 1.45 |
3.2(1/8'') | 8.71 | 12.70 | 3.96 | 7.9 | 15.9 | 2.90 |
4(5/32'') | 9.53 | 14.30 | 4.75 | 9.5 | 17.5 | 3.63 |
5.1(3/16'') | 11.20 | 16.90 | 5.66 | 11.4 | 25.4 | 7.17 |
5.6(7/32'') | 12.7 | 19.10 | 6.35 | 12.7 | 27.0 | 10.07 |
6.4(1/4'') | 13.61 | 20.80 | 7.37 | 14.6 | 28.6 | 11.43 |
7.1(9/32'') | 14.27 | 22.35 | 7.92 | 16.0 | 30.2 | 12.81 |
8(5/16') | 17.45 | 26.19 | 9.35 | 18.3 | 31.7 | 20.41 |
9.5(3/8'') | 19.05 | 29.36 | 11.13 | 21.4 | 36.5 | 27.53 |
11.1(7/16'') | 23.8 | 36.50 | 12.7 | 25.4 | 42.8 | 53.52 |
12.7(1/2'') | 27 | 41.28 | 14.27 | 28.5 | 50.8 | 79.83 |
