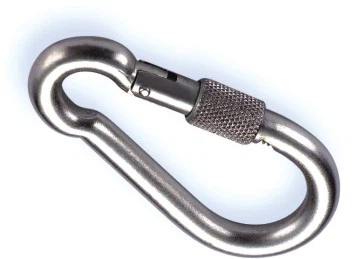

Snap Hook with Screw DIN5299 D, Stainless Steel, AISI304 oro 316
Snap Hook with Screw DIN5299 D, Stainless Steel, AISI304 oro 316
Snap Hook with Screw DIN5299 D
Size | Dimension(mm) | W.L.L | N.W. | ||||
(mm) | A | B | C | D | L | (lbs) | (g/pc) |
5×50 | 25 | 8 | 7 | 5 | 50 | 100 | 20 |
6×60 | 30 | 9 | 8 | 6 | 60 | 140 | 32 |
7×70 | 35 | 10 | 8 | 7 | 70 | 200 | 50 |
8×80 | 40 | 12 | 9 | 8 | 80 | 250 | 75 |
9×90 | 45 | 12 | 10 | 9 | 90 | 280 | 98 |
10×100 | 50 | 15 | 11 | 10 | 100 | 400 | 160 |
11×120 | 57 | 18 | 16 | 11 | 120 | 500 | 210 |
12×140 | 67 | 20 | 19 | 12 | 140 | 600 | 284 |
13×160 | 74 | 22 | 25 | 13 | 160 | 700 | 367 |
