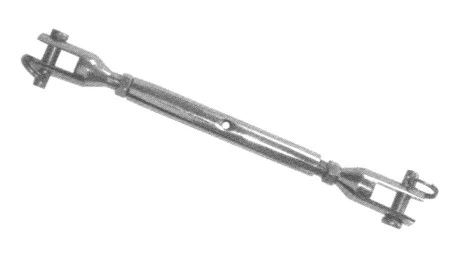

JIS Type Rigging Screw, AISI316 and AISI304 Stainless Steel Jaw and Jaw Formed and Machined
JIS Type Rigging Screw, AISI316 and AISI304 Stainless Steel Jaw and Jaw Formed and Machined
JIS Type Rigging Screw, AISI316 & AISI304
Size A | Dimension(mm) | WLL | WT | |||
(mm) | B | C | D | E | (kg) | (g/pc) |
4 | 65 | 120 | 4 | 4 | 150 | 70 |
5 | 70 | 130 | 5 | 5 | 250 | 80 |
6 | 80 | 145 | 6 | 5 | 350 | 80 |
8 | 90 | 175 | 8 | 6 | 700 | 160 |
10 | 100 | 200 | 10 | 8 | 1000 | 230 |
12 | 140 | 280 | 12 | 8 | 1500 | 450 |
14 | 150 | 290 | 14 | 10 | 1600 | 500 |
16 | 170 | 340 | 16 | 12 | 2300 | 1080 |
20 | 230 | 470 | 20 | 14 | 3000 | 2350 |
