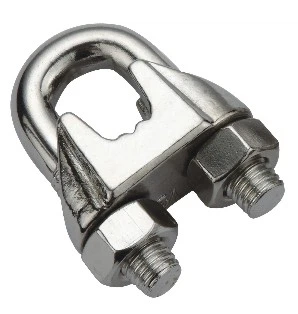

U.S Type Wire Rope Clip, Stainless Steel, AISI304 or 316
U.S Type Wire Rope Clip, Stainless Steel, AISI304 or 316
U.S type Wire Rope Clip, Stainless Steel, AISI304 or 316
Size | Dimension(mm) | N.W. | ||||||
(in) | A | B | C | D | E | F | G | (g/pc) |
1/8 | 11 | 14 | 14 | 5 | 10.8 | 22 | 20 | 15 |
3/16 | 13.5 | 15 | 16 | 6 | 13 | 26 | 24 | 30 |
1/4 | 17 | 18.5 | 20 | 8 | 15 | 32 | 31.5 | 52 |
5/16 | 18.3 | 20 | 22 | 8 | 16 | 35 | 34 | 60 |
3/8 | 22.5 | 22 | 27 | 10 | 22 | 40.5 | 41.8 | 100 |
7/16 | 24 | 23 | 30 | 10 | 22 | 43 | 42.8 | 110 |
1/2 | 27 | 26 | 35 | 12 | 23.3 | 49 | 53.9 | 174 |
9/16 | 30 | 26.5 | 40 | 14 | 27 | 52.5 | 54.7 | 225 |
5/8 | 33 | 28.5 | 40 | 14 | 28 | 57.5 | 59.2 | 248 |
