Stainless Steel Wire Rope
Regarding the stainless steel wire rope, the material is AISI304, AISI316, AISI316L etc, and the standard is DIN, BS and EN etc. For the construction:

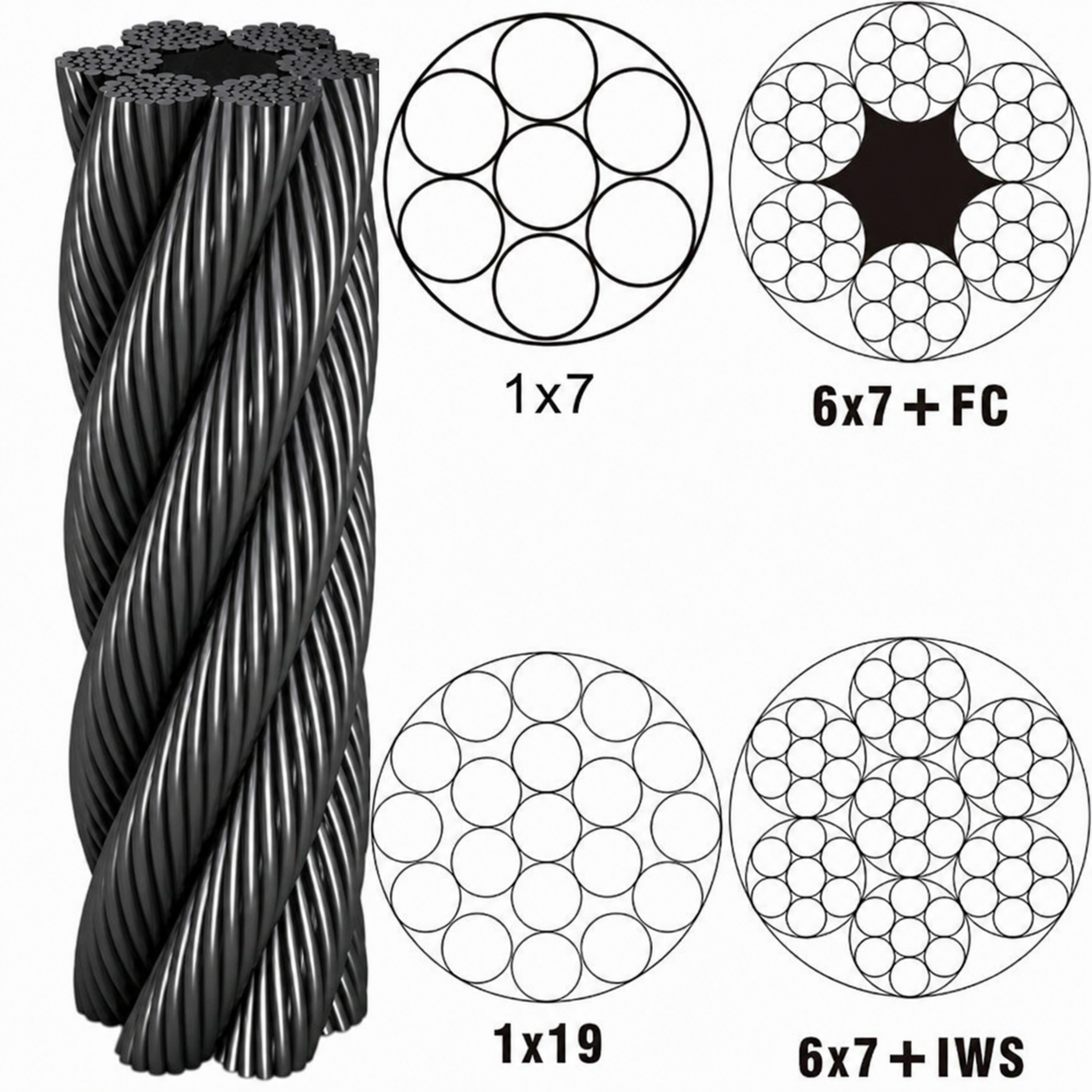

We can produce 1*7 & 1*19, which mainly be used in chemical, engineering, aviation, machine, instrument.
2. DIN3055 6*7+FC & 6*7+WSC(7*7), which mainly be used in mining, stay, logging, tramway and marine.
3. We also can produce 6*19, 6*37, 18*7 & 6*36.
Construction: DIN3055 6×7+FC，6×7+WSC（7×7）
Usage: mining, stay, logging, tramway, marine
Datasheet |
Diameter | Approx weight kg/100m | Nominal Tensile Strength | ||||
Minimum Breaking Strength(kN) | ||||||
1570N/mm2 | 1770N/mm2 | |||||
FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | |
2 | 1.43 | 1.57 | - | - | 2.35 | 2.54 |
3 | 3.22 | 3.54 | - | - | 5.29 | 5.71 |
4 | 5.72 | 6.29 | - | - | 9.41 | 10.2 |
5 | 8.94 | 9.83 | - | - | 14.7 | 15.9 |
6 | 12.9 | 14.2 | - | - | 21.1 | 22.9 |
7 | 17.5 | 19.3 | - | - | 28.8 | 31.1 |
8 | 22.9 | 25.2 | 33.4 | 36.1 | 37.6 | 40.6 |
9 | 28.9 | 31.8 | 42.2 | 45.6 | 47.6 | 51.4 |
10 | 35.7 | 39.3 | 52.2 | 56.3 | 58.8 | 63.5 |
11 | 43.2 | 47.5 | 63.1 | 68.2 | 71.1 | 76.8 |
12 | 51.5 | 56.7 | 75.1 | 81.1 | 84.7 | 91.5 |
13 | 60.4 | 66.4 | 88.1 | 95.2 | 99.4 | 107 |
14 | 70.1 | 77.1 | 102 | 110 | 115 | 124 |
16 | 91.5 | 101 | 134 | 144 | 151 | 163 |
