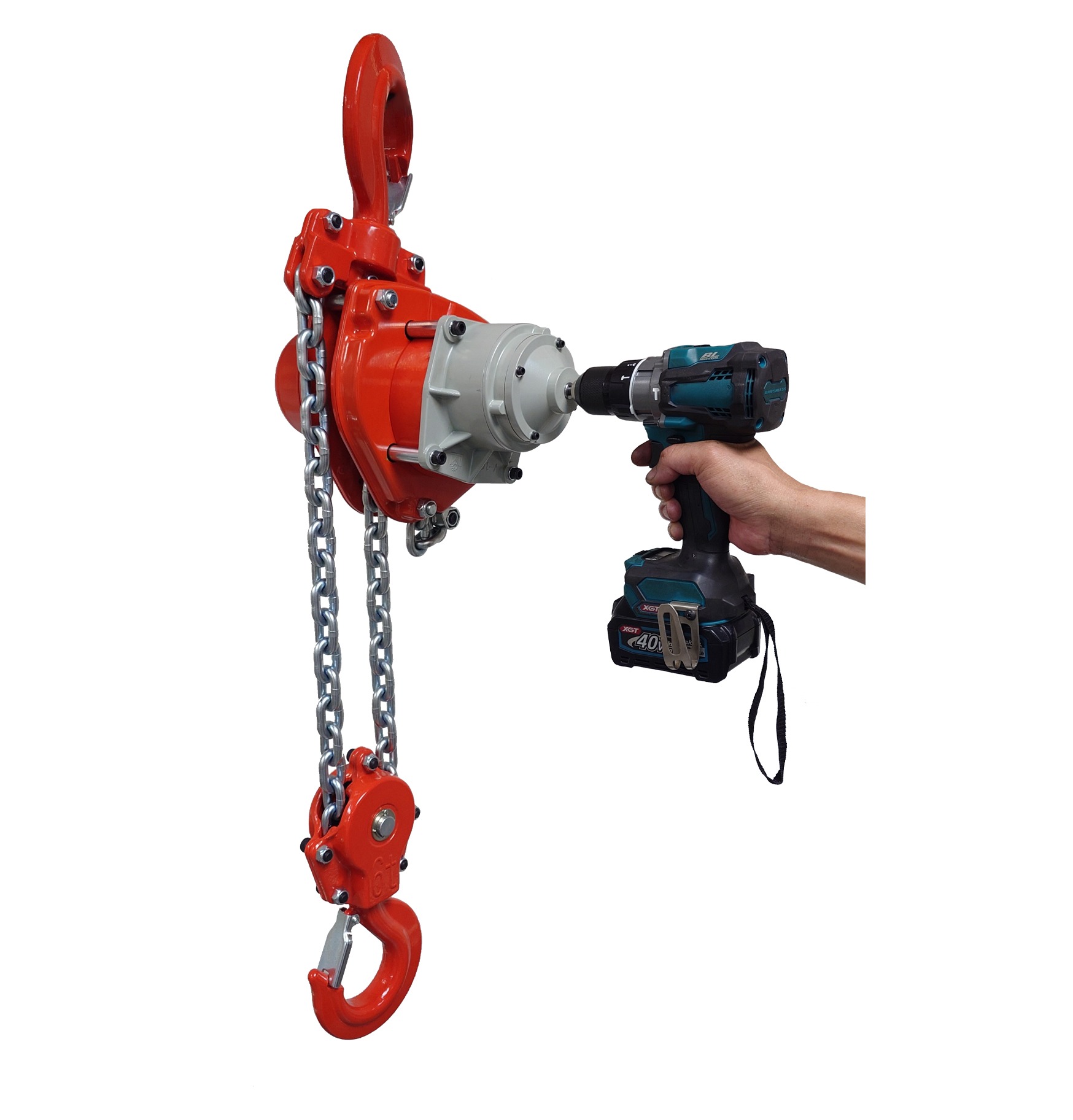

ETCB Power PRO Hoist
ETCB Power PRO Hoist
The Power PRO hoist with load limiter – ETCB, is available in 3.0 tonne, 6.0 tonne and 10.0 capacities. The hoist is fitted with a slipping clutch overload mechanism, so it is protected from overload. It is cordless battery powered and suggested to use a drill of maximum 2500 rpm to operate the unit.
Cordless battery powered
Available in 3t, 6t & 10t capacities
High speed helical gear box
Load limiter
Product Code
Rated load (kg)
Lifting chain specifications (mm)
Dimensions (mm)
No. chain falls
Motor speed (MAX) (r/min)
Lifting speed (m/min)
Brushless drill driver (N.m) V
Net weight (kg)
Packing weight (kg)
Packing size (cm)
Weight for each additional meter of chain (kg/cm)
Technical drawing
A
B
D
E
F1
F2
G
ETCB-0300
3000
10 x 30
228
84
98
157
36
56
500
1
2600
0.718
68 18V or above
29.6
31.3
38 x 34.5 x 29
2.2
ETCB-0600
6000
10 x 30
228
84
86
220
49
70
635
2
2600
0.359
68 18V or above
44.0
46.4
50 x 37 x 33
4.4
ETCB-1000
10000
10 x 30
228
84
153
263
54
87
660
3
2600
0.239
90 18V or above
56.9
60.8
50 x 43.5 x 41
6.5
