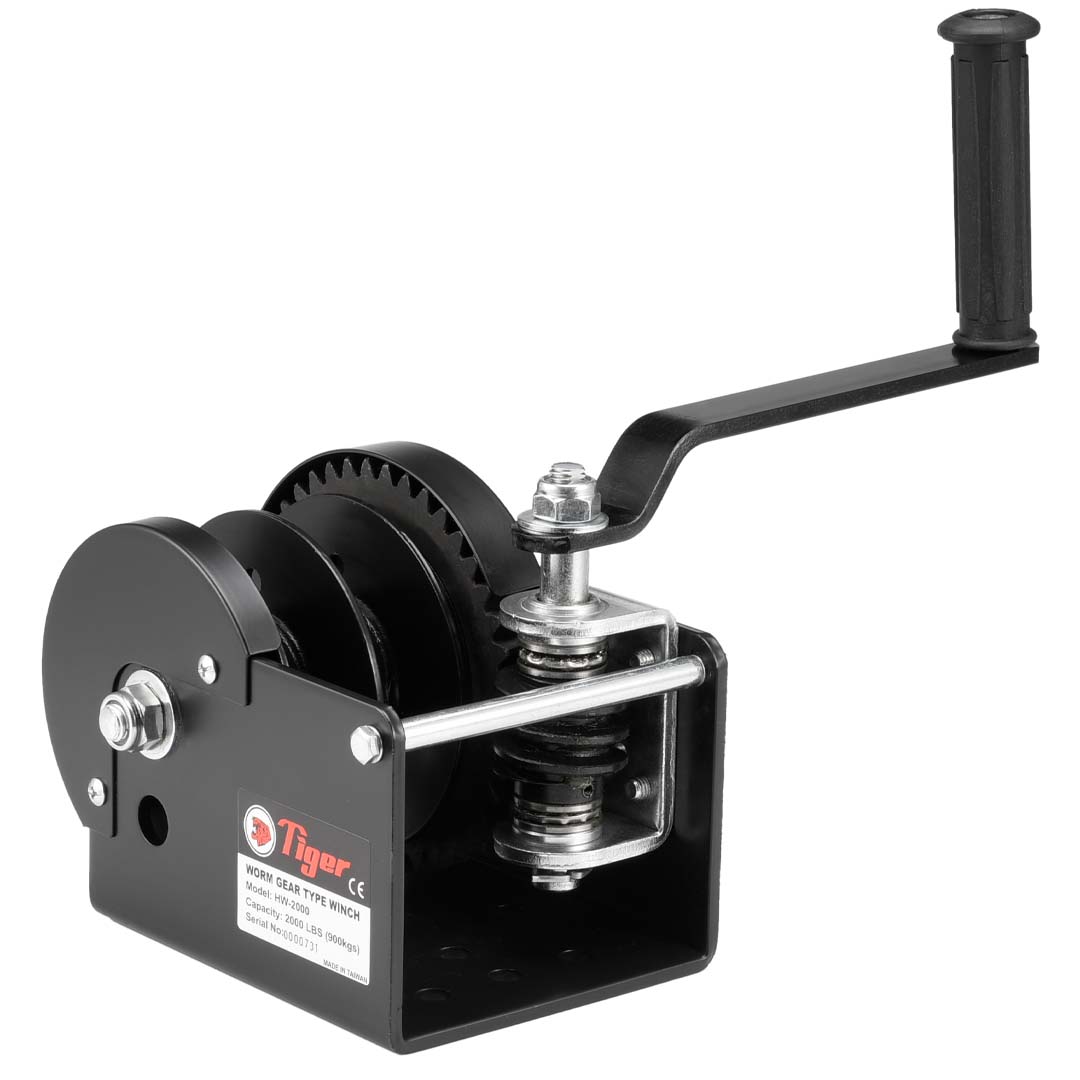

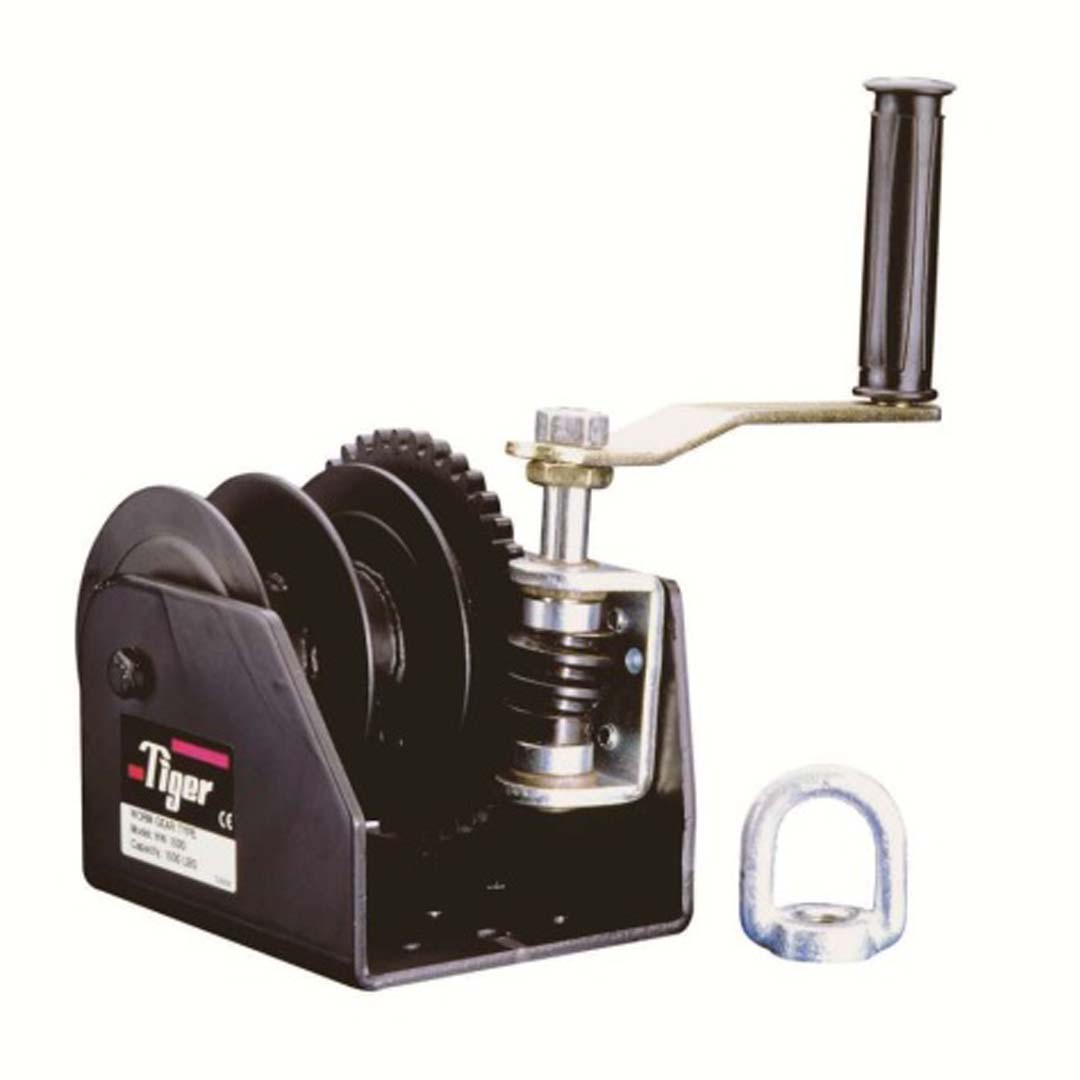

HW-2000 Hand Winch
HW-2000 Hand Winch
2000lb/900kg capacity

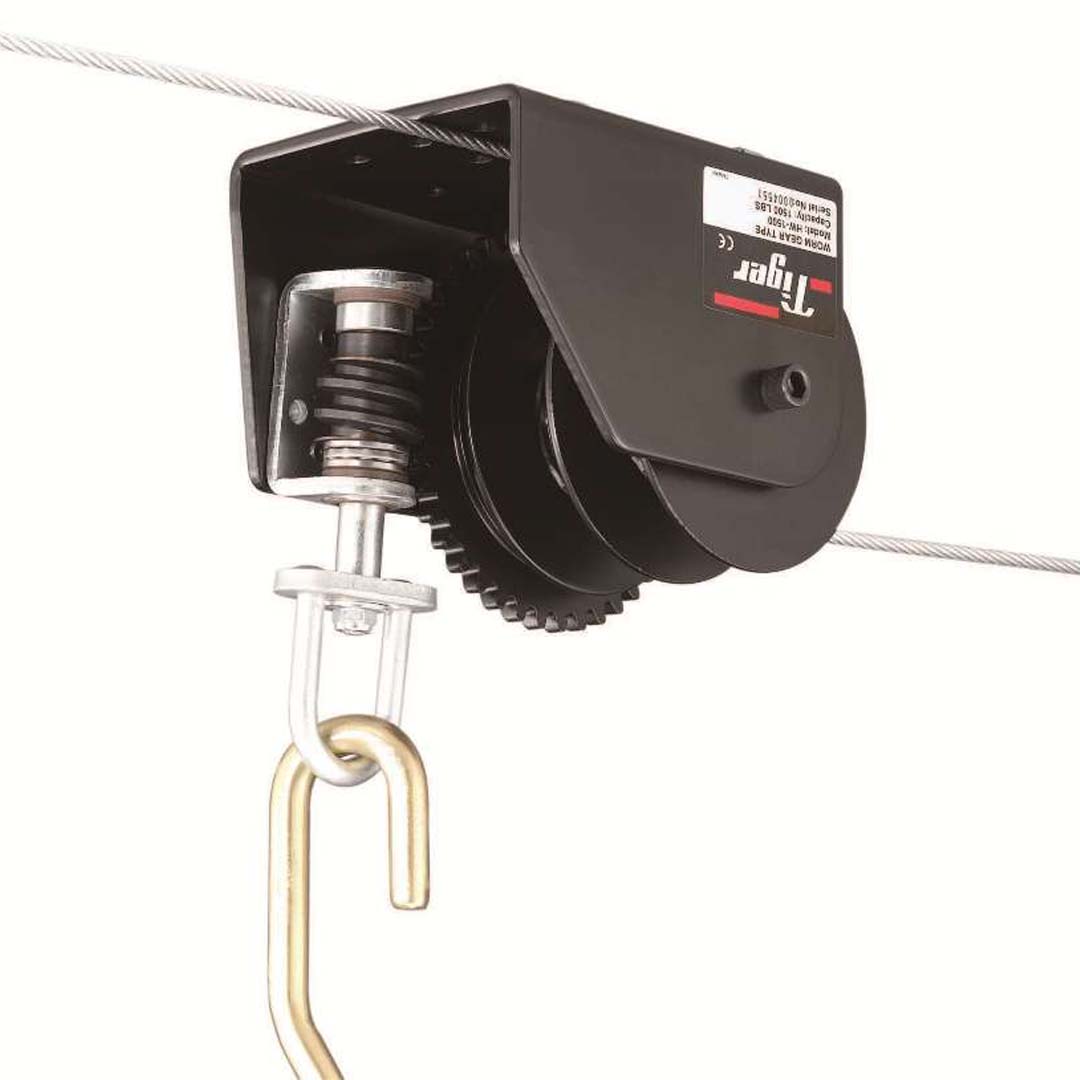

Can be ceiling mounted with loop drive
Operating temperature -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
Available in regular or split reel, which allows for operation of two line or cables for greater versatility
Available in handle or loop drive models
Product Code
Pulling Capacity (lbs/kg)
Hand Force Required (kg)
Gear Ratio
Hub Diameter (mm)
Handle Length (mm)
Unit Weight (with handle) (kg)
Unit Weight (with loop)
Cable Diameter (mm/inch)
Cable Storage Cap. (m)
Technical Drawing
HW-2000-S (Split reel)
2000/900
4.5
41:1
48
190
5.7
5.4
4.8/ 3/16
8.8 per side
HW-2000
2000/900
2.25
41:1
48
190
5.5
5.2
4.8/ 3/16
17.6
